Custom Fixtures

Mekan designs product specific unit fixtures from low to high complexity and production volume. Mekan has great experience in this area and often old approved ideas from different fixtures are put together to solve new fixture tasks. See a few samples here

Custom fixtures

Mekan designs product specific unit fixtures from low to high complexity and production volume. Mekan has great experience in this area and often old approved ideas from different fixtures are put together to solve new fixture tasks. See a few samples here

DCF 1.0

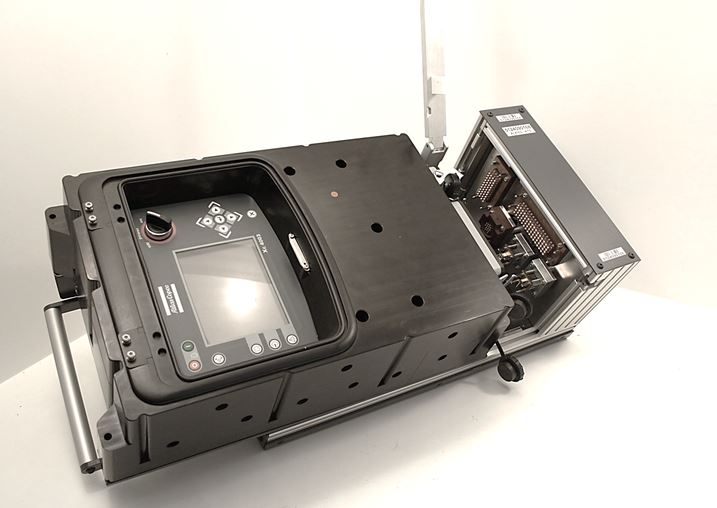

Unit fixture with pneumatic connection from four sides.

35456

Unit fixture with challenging tolerances on connector position

56756

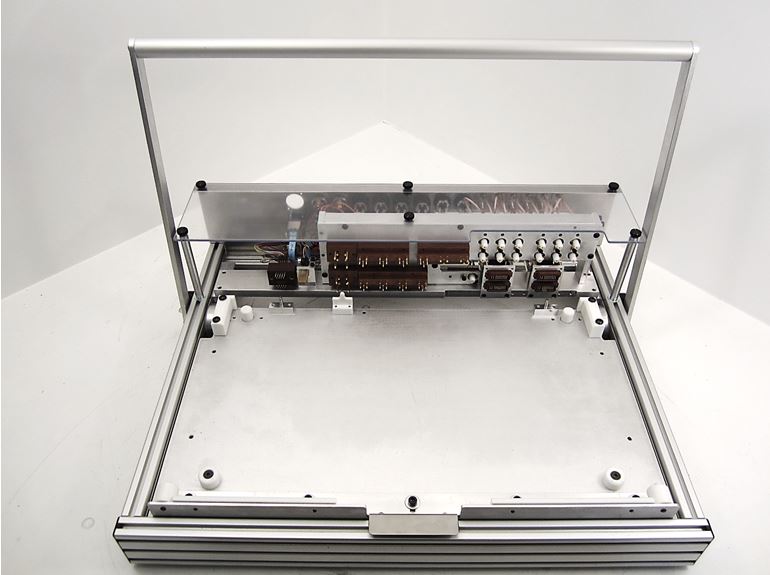

Unit fixture with many connectors

Custom Fixtures

Challenging fixture for amplifier PCB with test pads at component side

Custom Fixtures

Component fixture

Custom Fixtures

Unit fixture with exchangeable test adapters for all product variants

Custom Fixtures

Tray with Genrad interface and connection to four units

Custom Fixtures

Leakage test of plastic front with vacuum

Custom Fixtures

Vacuum test fixture of Atex batteries for the offshore industry.
